I need some help finding a new antenna

[MrSpermCell]

Hey guys, earlier last year I went through a car wash and it caught my antenna and ripped it off.
I ordered a new one (off amazon) and unsurprisingly it didnt fit the car.
Im still looking for one and thought I could possibly upgrade it, maybe get a fin antenna or a shorter better looking one.
Im still looking for a new one to install but im not sure were to look.
I would really appreciate if anyone has any suggestion on what antenna to get and where to look for one.
Thanks in advance.



[Handy Andy]

Depending on the year, and since you're outside of the USA, this may not be able to help but I'm trying.

If you can, the old antenna - do you have the old housing? The cable might help you decipher what you really need to have.

The year is why I can't "pin down" a good concept except to see if you have used antennas from a wreck-yard - that have a similar cabling system.

The reasons on this - one of the cables power an amplifier at the rear antenna base, while the other coaxial cable sends the signal back to the Audio Head unit. The whip uses a twin-coil wrapped in plastic, one for Medium Wave (AM) and the other for FM.

However, the catch is the security and RF-ID for your remote - that receiver for it has two possible locations, front windshield and the rear antenna - both serve as pickup and if one works - great, but both are needed to really access some extra features that are only possible if the RF-Passive entry system is present.

I'm adding here...-stay tuned...

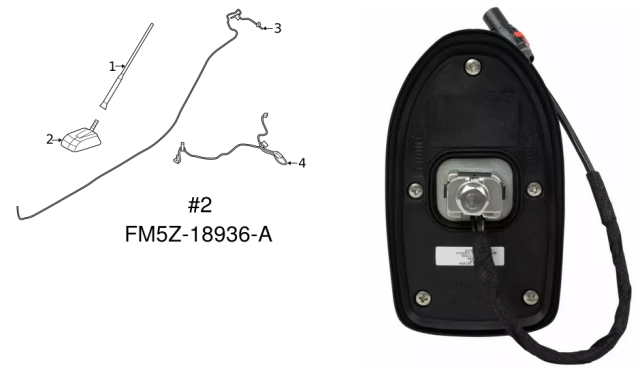

Now, granted you may not have all those extras, so this is why I'm taking this approach - the recommended ones are shown.

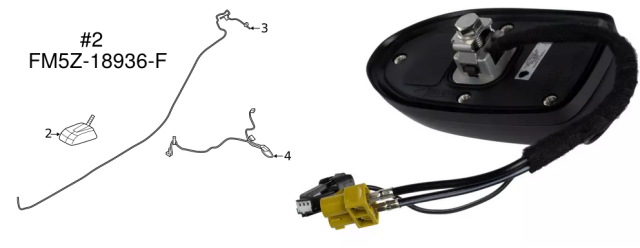

You may be able to use a Fin-style but the cabling and the connector used, as well as the equipment it's designed to be interfaced with, will be different. Shown above - this is presuming you do not have SYNC - you may have the FORD Audio System - not SYNC - both use satellite but cable the signal in different ways.

Notice the connector will be different and is for SYNC and above in revision.

​
