2016 Sync Module location

Messages
1
Likes
0
City
RAPID CITY
State
SD
Country
United States
What I Drive
2016 Ford Fiesta S Sedan 4D
#1
I cannot find the Sync module on my 2016 Ford Fiesta S Sedan 4D. Under the glovebox is the BCM. Behing the glove box is the fuse box on the right and the PCM on the left. It has a small 4" screen fornclock and radio dispplay; there is nothing behind that. There is nothing behind rhe CD player. I have torn everything apart except the main instrument cluster. Where is the stupid thing?!?


Handy Andy

Well-Liked Member
Premium Account
Messages
2,053
Likes
1,412
City
Grand Rapids
State
MI
Country
United States
What I Drive
2018 Ford Fiesta SE HB
#2

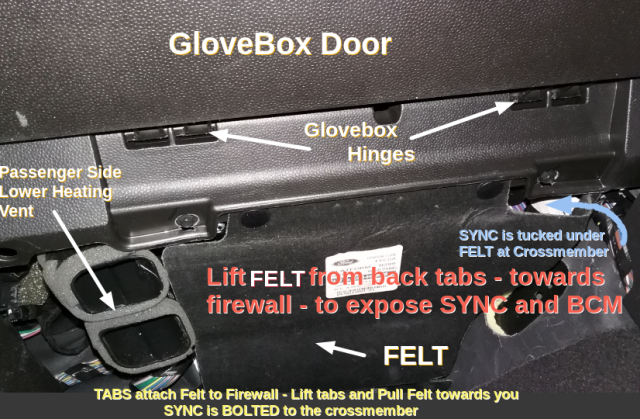

SYNC - if you have SYNC version 1 - is under the Glove Box, BELOW it - find the felt under the glovebox, pry it down - you'll see this...

Then when you lifted off the FELT from Firewall and can pull it back towards you... look upwards UNDERNEATH the Glovebox where the Passenger side-crossmember is at - below the Fuseblock - It may help to remove the Glovebox; Pry towards you at the Hinges to help with this...

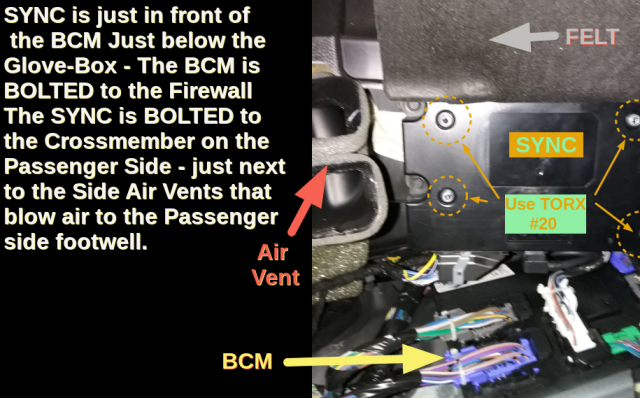

Peel the Felt back to show or see this...

If you don't see this, then you have a Fiesta that has a different version of SYNC that is part of the main console display and looks like a 10" tablet(?) - if so then that tablet is your SYNC unit - else the Module under Glovebox does the work for the Display - but the Display console has all the B-Tooth stuff and communications.
