I had eluded to building a new garage in a previous thread. Well all has come to reality. My house is on the market, for a lot more than I thought it would list for. Although the family farm I am relocating to is shagadelic, it seriously lacks in the garage department. Currently on the property is a 32x32 2 bay + office, about 50-60 years old and suffering from a cracking pad among other issues. My plans are to demo the original building and build a 36 W x 28 D 2 bay, hoist on one side and wash bay on the other. Although this is in the early planning stages, this is what I envision...

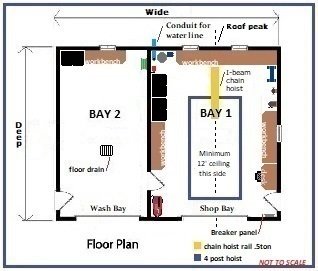

Just Garage plans 1102.jpg
Also in the plan is in-floor pex to keep the shop at about 2 to 5-deg above freezing 24/7 with aux heating (electric or radiant) for when I am working. Also I have included in the build budget is a 4 post hoist.
I havent gone beyond having conversations with the engineer (my wifes cousin) or discussing demo (family friend). I plan to document the build here and look forward to hear any words of wisdom on the subject as I fulfill one of my bucket list dreams of building my own shop.
Below is my grandfather's garage, "Reliance Garage" on the main street in Norwich, Ont. long ago. He is standing on the right, his brother on the left. I plan to hang a sign on my garage like the one in this photo. That will be the closing chapter in this build...then I will know it is done!
I have it narrowed down to a few hoists. My choices are all hobby lifts due to cost. They must have 220V pump and trolley jack. I will be using the hoist for mostly my vehicles. I did most of my research early so I could sort out concrete and space requirements. Actually, the hoist will be mostly used to raise the Speed6 on so i dont have to start it and move it out of the shop to do small jobs in the winter. LOL
As for the wash bay, only requirements are professionally installed epoxy floor and a sand interceptor. A settling pit style drain in the floor and sink a small tank or barrel outside to keep the drain runs clear should suffice. Im in the country, no city sewer or water.
I currently have a compressor, bench grinder, drill press, MIG, parts washer among other things. I will be adding a shop press some day, 12 to 20 T.
My new garage shop side is 20' wide by 27' deep (inside). 1' wider and 5' longer than my current garage which I find is about the smallest I consider adequate. I can currently open all the doors on a car and still work my way around the car. Im assuming the new shop will be enough considering Im adding a 4 post hoist to the equation. This garage is mostly for a guy who does a lot of maintenance & small jobs and the occasional big job plus a considerable amount of detailing. Overall construction cost is a factor, I would like to keep the demo & contractor cost to under $100g.

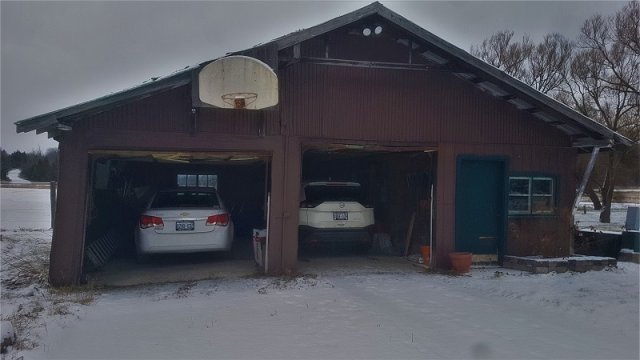

old garage.jpg
This pic is here for a chuckle. I will demo this and most likely build on the same spot. Transformer is right beside it reducing power connection costs. Actual measurement is 32x32, 2 bays with an office. It was built many many years ago and was the shop up to the 80s for the family business doing power line work. They repaired all kinds of equipment including Nodwells (monstrous tracked all terrain equipment) out of this shop. Now they have a manufacturing facility next door to build them. However due to the age and condition it wont do! The pad has cracked so bad its separating like tectonic plates. The wall on the left side is kicked out, the roof timber and strapping is so dry that keeping tin on the roof requires regular maintenance. Plus its not designed to accept a lift, let alone my 1/2 ton chain hoist. I wish it was a viable skeleton, especially if it had an upper apartment or something I could convert to a games room (pool table, foose, big screen etc;))
